JAGUAR High End 8 Zones Lead Free Hot Air Reflow Oven
Model No.: R8
JAGUAR R High-end series was designed for high standard applications, such as Semi-conductor, automobile, military related & etc…, which provides optimized lead-free processing, with high precision of heating and cooling, low power & nitrogen consumption, R series is favored by senior application customers.
Specification:
| Model | JAGUAR R8 |
| Heating System | Number of heating zones | Top 8/Bottom8 |
| Heating passage | 3121mm |
| Heating style | Top: hot air; bottom: hot air |
| Cooling style | Force air |
| Conveyor System | Max. Width of PCB | 450mm |
| Mesh belt width | 500mm |
| Conveyor Direction | L→R(or R→L) |
| Process Height | 900±20mm |
| Conveyor type | Mesh(Mesh+Rail is optional) |
| Conveyor speed | 0-2000mm/min |
| Fixed track | Front track fixed(option: rear track fixed) |
| Control system | Power supply | 3 phase 380V 50/60Hz |
| Total power consumption | 32kw |
| Startup power consumption | 30kw |
| Steady consumption | 6-9KW |
| Ramp Up time | About 20 mins |
| Temp. setpoint | Room temperature-300℃ |
| Temp. control method | PID close loop control + SSR driving |
| Temp. control precision | ±1℃ |
| Temp. deviation on PCB | ±2℃ |
| Data storage | Process Data and status storage (80 GB) |
| Nozzle plate | 8mm Thick Aluminum Plate Copper |
| Abnormal Alarm | Abnormal temp. (overtemp/low temp.) |
| Board dropped alarm | Tower light: Amber-warning, Green-normal, Red-abnormal |
| General | Dimension(L*W*H) | 5700×1350×1490mm |
| Weight | 1950KG |
| Color | Computer grey |
About Us

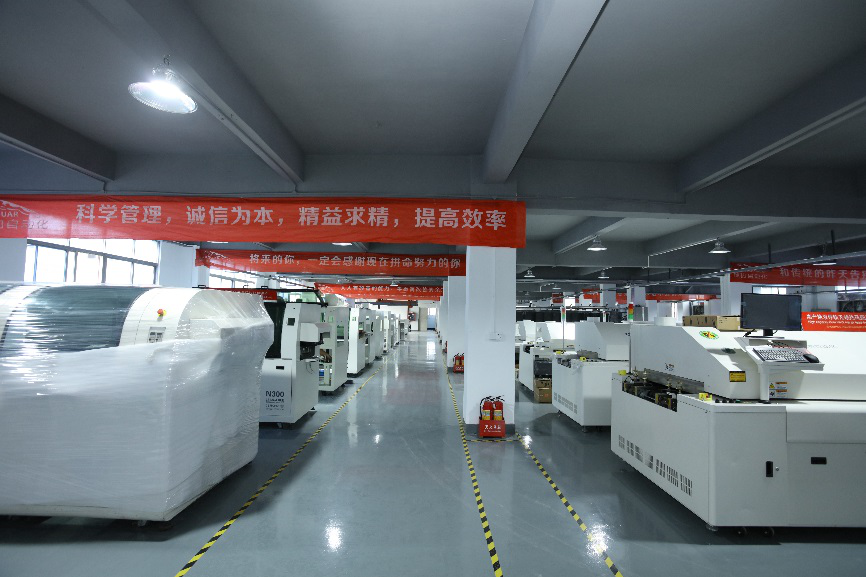

JAGUAR AUTOMATION is a high-tech international company, integrated research develope and manufacture of Lead-free Reflow Oven, Lead-free Wave Soldering, High Speed Glue Dispenser and Solder Paste Printer, we can provide turnkey solution for SMT and DIP production line.
Basic on our standard manufacture, and strong customize design ability, JAGUAR AUTOMATION already formed abvious advantages, such as Fast technology upgrade, High production efficiency, Low maintenance and High quality service to outand the market.
Ensure machine's good operation is our duty, machine runs well is our proud. through years of hard work, our company wins a lot of good reputation, we become long-term partner to many famous company, for example: LED: FSL, OPPLE, Home Appliance: SKYWORTH, Midea, Communication: HUAWEI, Auto Electronics: BYD and so on.
